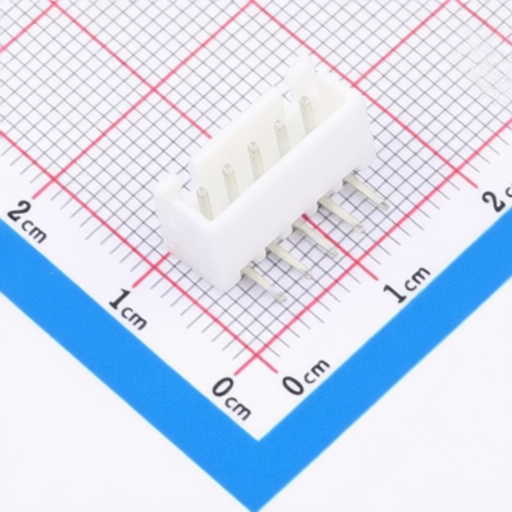

Hongxing HX25003-5WAP

Hongxing HX25003-5WAP

Name: Hongxing HX25003-5WAP
Brand: Hongxing

Manufacturer: Hongxing Asian Brands

Mfr. Part #: HX25003-5WAP

Package: Through Hole,Right Angle,P=2.5mm

Customer #:

Key Attributes: CONN HEADER TH R/A 5POS 2.5mm

Description: Connector Header 5 position 2.5mm Pitch Right Angle

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Hongxing

Package:

Through Hole,Right Angle,P=2.5mm

Y-Width of Bottom Edge on Board:

7.2mm

Reference Series:

Pins Structure:

1x5P

Contact Material:

Brass;PA

Pitch:

2.5mm

Number of PINs Per Row:

Number of Rows:

Z-Height of the Board:

5.9mm

Row Spacing:

Operating Temperature:

Mounting Type:

Right Angle

Additional Information

Type	Details
Minimum	10
Multiple	10
Standard Packaging	1000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
