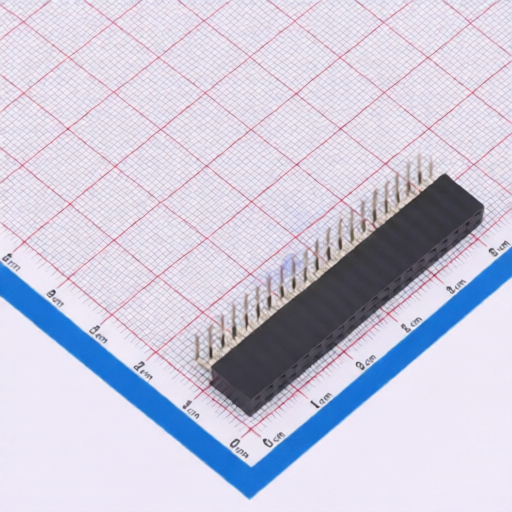

Hong Cheng HC-PM254-8.5H-2x20PW
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-PM254-8.5H-2x20PW
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 40POS 2.54mm DUAL ROW TH R/A
Description:
Female Header 40 Position 2.54mm Pitch Dual Row Through Hole, Right Angle -40℃~+105℃
Datasheet:
Hong Cheng HC-PM254-8.5H-2x20PW
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Pins:
40P
Voltage Rating (Max):
-
PIN Length:
3mm
Current Rating:
3A
Number of Rows:
2
Supplementary Features:
-
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x20P
Holes Direction:
Side
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 11 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
