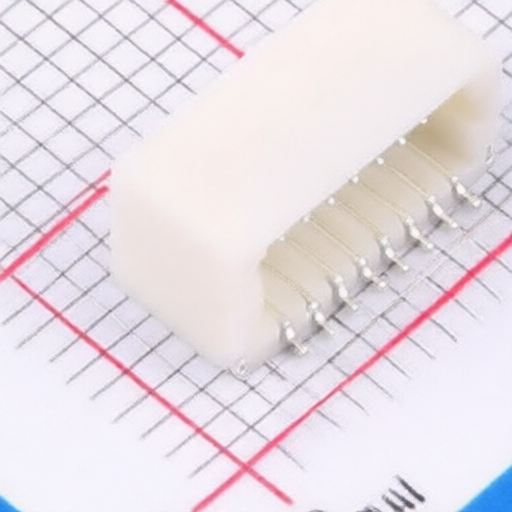

Hong Cheng HC-SHD1.0-2x8PWT
Manufacturer:
Hong Cheng
Mfr. Part #:
HC-SHD1.0-2x8PWT
Package:
SMD,P=1mm,Surface Mount,Right Angle
Customer #:
Description:
Connector Header 16 position 1mm Pitch 1A Surface Mount, Right Angle -25℃~+85℃
Datasheet:
Hong Cheng HC-SHD1.0-2x8PWT
Products Specifications
Manufacturer:
Package:
SMD,P=1mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
-
Reference Series:
SHD
Pins Structure:
2x8P
Contact Plating:
Tin
Contact Material:
Copper;LCP
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
1mm
Voltage Rating (Max):
50V
Number of PINs Per Row:
8
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
11.1mm
Row Spacing:
-
Z-Height of the Board:
5.6mm
Mounting Type:
Surface Mount, Right Angle
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
