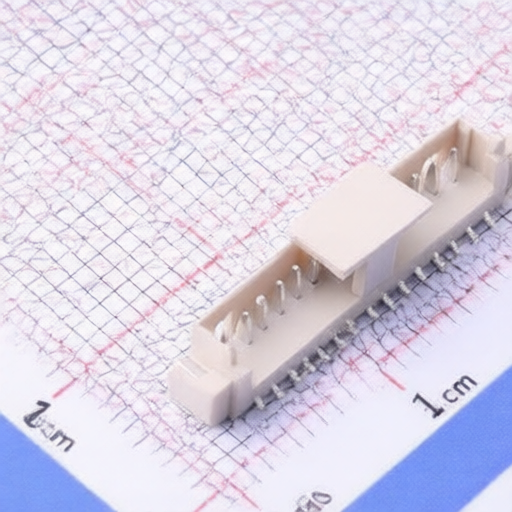

HOAUC HYCW01-LF14-125B
Manufacturer:
HOAUC
Asian Brands
Mfr. Part #:
HYCW01-LF14-125B
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 14POS 1.25mm
Description:
Connector Header 14 position 1.25mm Pitch 1A Surface Mount,Vertical -65℃~+125℃
Datasheet:
HOAUC HYCW01-LF14-125B
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.3mm
Pins Structure:
1x14P
Reference Series:
-
Contact Plating:
Tin
Contact Material:
Copper alloy;LCP
Operating Temperature:
-65℃~+125℃
Flame Retardant Rating:
UL94V-0
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
14
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
22.3mm
Z-Height of the Board:
4.9mm
Row Spacing:
-
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
