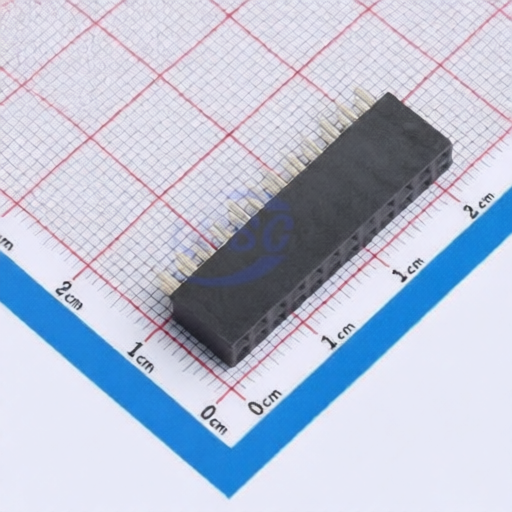

HMTCONN B25420230-24PB0513-H85C32
Manufacturer:
HMTCONN
Asian Brands
Mfr. Part #:
B25420230-24PB0513-H85C32
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 24POS 2.54mm DUAL ROW TH
Description:
Female Header 24 Position 2.54mm Pitch Dual Row Through Hole -40℃~+105℃
Datasheet:
HMTCONN B25420230-24PB0513-H85C32
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Rows:
2
Number of Pins:
24P
PIN Length:
3.2mm
Contact Plating:
Gold
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x12P
Holes Direction:
Top
Current Rating:
3A
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 120 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
