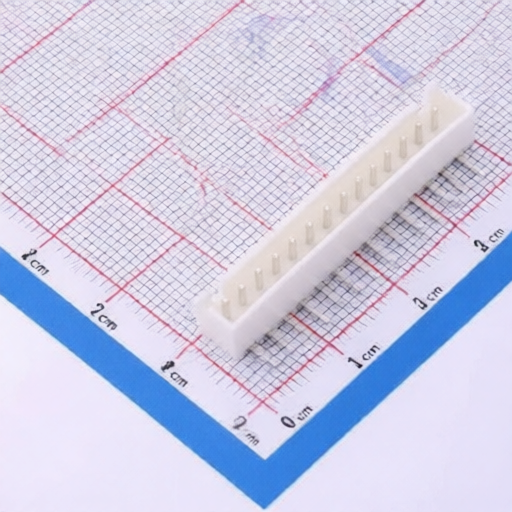

HMTCONN W2542100-14PW2113
Manufacturer:
HMTCONN
Asian Brands
Mfr. Part #:
W2542100-14PW2113
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Description:
1x14P XH Tin -25℃~+85℃ 2.5mm 250V 14 1 Right Angle Through Hole,Right Angle,P=2.54mm Headers, Male Pins RoHS
Datasheet:
HMTCONN W2542100-14PW2113
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Y-Width of Bottom Edge on Board:
7.32mm
Pins Structure:
1x14P
Reference Series:
XH
Contact Plating:
Tin
Contact Material:
Brass;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
14
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
37.5mm
Z-Height of the Board:
5.9mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
