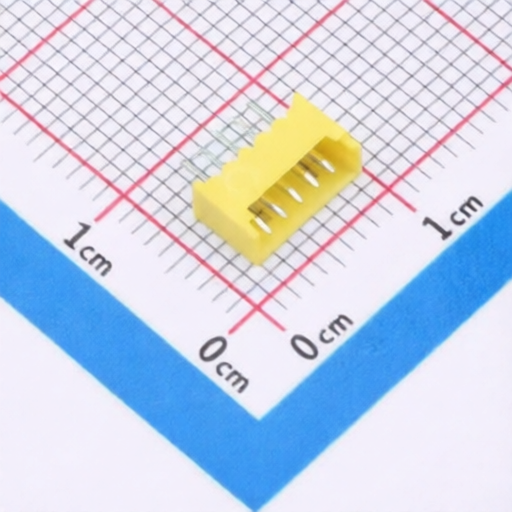

HMTCONN W1251100-5PY2123
Manufacturer:
HMTCONN
Asian Brands
Mfr. Part #:
W1251100-5PY2123
Package:
Through Hole,Right Angle,P=1.25mm
Customer #:
Description:
1x5P PicoBlade(MX 1.25) Tin -25℃~+85℃ 1.25mm 125V 5 1 Right Angle Through Hole,Right Angle,P=1.25mm Headers, Male Pins RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.25mm
Y-Width of Bottom Edge on Board:
4.7mm
Pins Structure:
1x5P
Reference Series:
PicoBlade(MX 1.25)
Contact Plating:
Tin
Contact Material:
Copper alloy;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-2
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
8.15mm
Z-Height of the Board:
3.2mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
