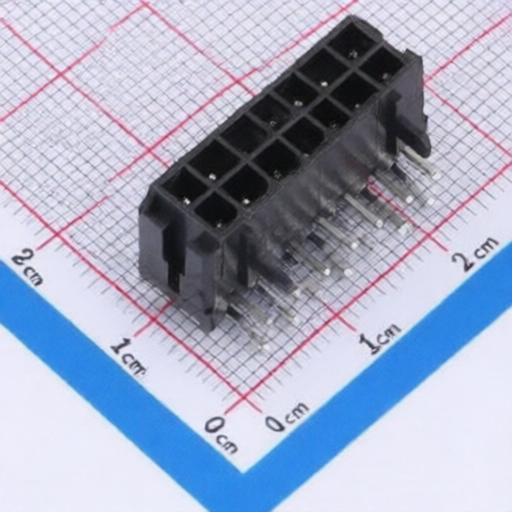

HMTCONN W300220KC-14PB2123
Manufacturer:
HMTCONN
Asian Brands
Mfr. Part #:
W300220KC-14PB2123
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Description:
2x7P Micro-Fit(MX 3.0) -25℃~+85℃ 3mm 600V 7 2 3mm Right Angle Through Hole,Right Angle,P=3mm Headers, Male Pins RoHS
Datasheet:
HMTCONN W300220KC-14PB2123
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
11.82mm
Pins Structure:
2x7P
Reference Series:
Micro-Fit(MX 3.0)
Contact Plating:
-
Contact Material:
Copper alloy;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Harpoon Contact (Plastic)
Pitch:
3mm
Voltage Rating (Max):
600V
Number of PINs Per Row:
7
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
24mm
Row Spacing:
3mm
Z-Height of the Board:
8.8mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
