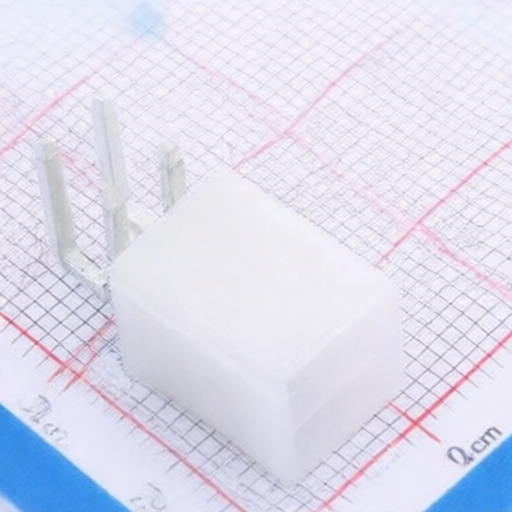

HMTCONN W420120K-4PW2123
Manufacturer:
HMTCONN
Asian Brands
Mfr. Part #:
W420120K-4PW2123
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Description:
2x2P Mini-Fit(MX 4.2) Tin -25℃~+85℃ 4.2mm 250V 2 2 4.2mm Right Angle Through Hole,Right Angle,P=4.2mm Headers, Male Pins RoHS
Datasheet:
HMTCONN W420120K-4PW2123
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Y-Width of Bottom Edge on Board:
19.94mm
Pins Structure:
2x2P
Reference Series:
Mini-Fit(MX 4.2)
Contact Plating:
Tin
Contact Material:
Copper alloy;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-2
Pitch:
4.2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
2
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
9.6mm
Z-Height of the Board:
9.65mm
Row Spacing:
4.2mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
