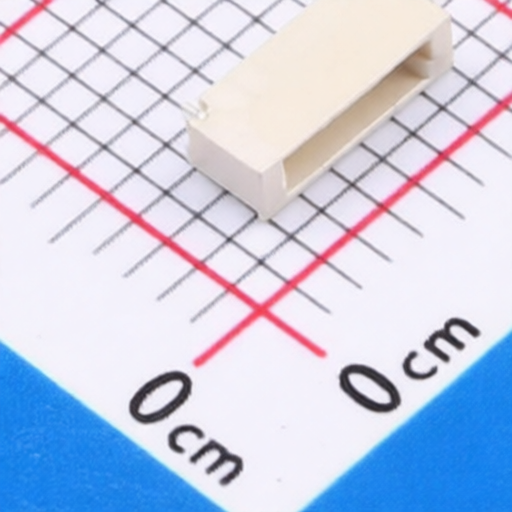

HMTCONN W0801120-5PW2431
Manufacturer:
HMTCONN
Asian Brands
Mfr. Part #:
W0801120-5PW2431
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Customer #:
Description:
1x5P Tin 0.8mm 30V 5 1 Surface Mount, Right Angle -25℃~+85℃ SMD,P=0.8mm,Surface Mount,Right Angle Headers, Male Pins RoHS
Datasheet:
HMTCONN W0801120-5PW2431
Products Specifications
Manufacturer:
Package:
SMD,P=0.8mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
2.82mm
Pins Structure:
1x5P
Contact Plating:
Tin
Supplementary Features:
Auxiliary Solder Pin
Contact Material:
Brass;LCP
Pitch:
0.8mm
Voltage Rating (Max):
30V
Number of PINs Per Row:
5
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
6.25mm
Z-Height of the Board:
1.85mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-25℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 4000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
