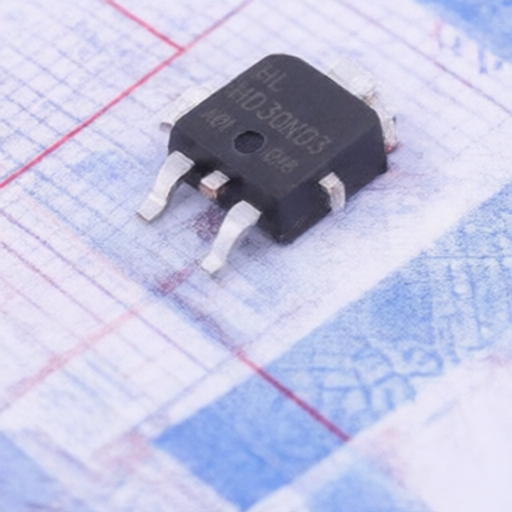

HL(Haolin Elec) HD30N03

Name: HL(Haolin Elec) HD30N03
Brand: HL(Haolin Elec)

Manufacturer: HL(Haolin Elec) Asian Brands

Mfr. Part #: HD30N03

Package: TO-252-2(DPAK)

Customer #:

Description: 30V 20A 19mΩ@10V 3V@250uA 1 N-channel 80W TO-252-2(DPAK) Single FETs, MOSFETs RoHS

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

HL(Haolin Elec)

Package:

TO-252-2(DPAK)

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

20A

Operating Temperature -:

-55℃~+150℃

RDS(on):

19mΩ@10V

Gate Threshold Voltage (Vgs(th)):

3V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

200pF

Number:

1 N-channel

Output Capacitance(Coss):

740pF

Input Capacitance(Ciss):

1.14nF

Pd - Power Dissipation:

80W

Gate Charge(Qg):

24nC@5V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	2500
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99
