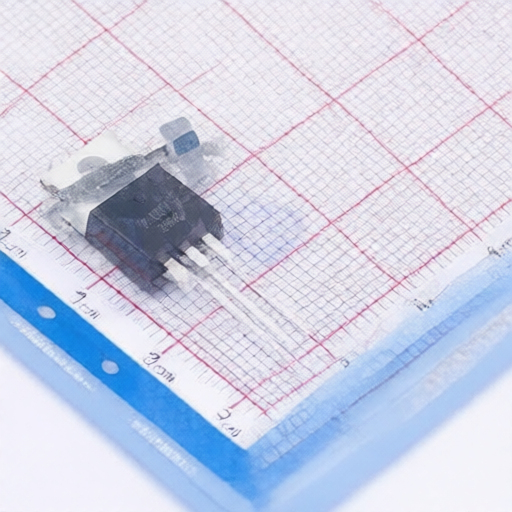

HL S120N15T
Manufacturer:
HL
Asian Brands
Mfr. Part #:
S120N15T
Package:
TO-220
Customer #:
Key Attributes:
MOSFET N-CH 150V 120A TO-220
Description:
N-Channel 150V 120A 178.6W Through Hole TO-220
Datasheet:
HL S120N15T
Products Specifications
Manufacturer:
Package:
TO-220
Drain to Source Voltage:
150V
Current - Continuous Drain(Id):
120A
Operating Temperature -:
-55℃~+150℃
RDS(on):
11.5mΩ@10V,20A
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
-
Number:
1 N-channel
Pd - Power Dissipation:
178.6W
Output Capacitance(Coss):
268pF
Input Capacitance(Ciss):
3.31nF
Gate Charge(Qg):
45nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HL
282 Products
HL is located in Shenzhen, China, and is a national high-tech enterprise focusing on MCUs, motor drivers, and system control. The company primarily produces microcontroller units (MCUs), motor driver chips, and related products for system control.
