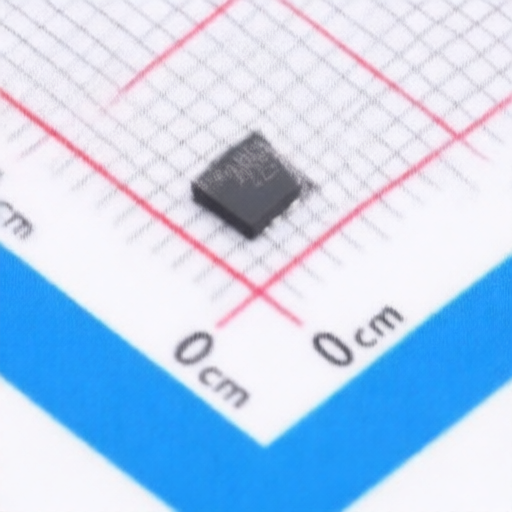

HL S40N06D
Manufacturer:
HL
Asian Brands
Mfr. Part #:
S40N06D
Package:
PDFN(3x3)
Customer #:
Key Attributes:
MOSFET N-CH 60V 40A PDFN(3x3)
Description:
N-Channel 60V 40A Surface Mount PDFN(3x3)
Datasheet:
HL S40N06D
Products Specifications
Manufacturer:
Package:
PDFN(3x3)
Configuration:
-
Drain to Source Voltage:
60V
Current - Continuous Drain(Id):
40A
Operating Temperature -:
-55℃~+175℃
RDS(on):
20mΩ@4.5V,10A
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
8pF
Number:
1 N-channel
Pd - Power Dissipation:
30W
Input Capacitance(Ciss):
930pF
Output Capacitance(Coss):
230pF
Gate Charge(Qg):
22nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HL
282 Products
HL is located in Shenzhen, China, and is a national high-tech enterprise focusing on MCUs, motor drivers, and system control. The company primarily produces microcontroller units (MCUs), motor driver chips, and related products for system control.
