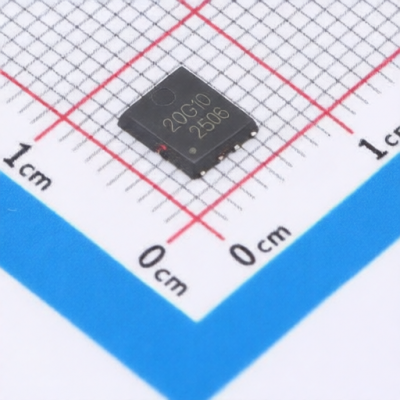

HL 20G10F
Manufacturer:
HL
Asian Brands
Mfr. Part #:
20G10F
Package:
PDFN5x6-8L
Customer #:
Key Attributes:
MOSFET N-CH+P-CH ARR 100V 15A PDFN5x6-8L
Description:
N-Channel+P-Channel Array 100V 15A 3.5W Surface Mount PDFN5x6-8L
Products Specifications
Manufacturer:
Package:
PDFN5x6-8L
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
15A
RDS(on):
220mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2.5V@250uA
Type:
N-Channel + P-Channel
Reverse Transfer Capacitance (Crss@Vds):
42pF
Number:
1 N-Channel + 1 P-Channel
Pd - Power Dissipation:
3.5W
Input Capacitance(Ciss):
1.228nF
Output Capacitance(Coss):
53pF
Gate Charge(Qg):
20.6nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 5000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HL
282 Products
HL is located in Shenzhen, China, and is a national high-tech enterprise focusing on MCUs, motor drivers, and system control. The company primarily produces microcontroller units (MCUs), motor driver chips, and related products for system control.
