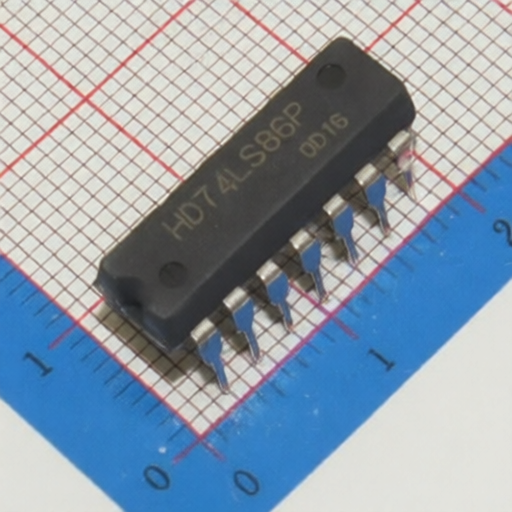

Hitachi 74LS86
Manufacturer:
Hitachi
Mfr. Part #:
74LS86
Package:
DIP-14
Customer #:
Description:
10mA 23ns@5V,15pF 5V DIP-14 Gates and Inverters RoHS
Datasheet:
Hitachi 74LS86
Products Specifications
Manufacturer:
Package:
DIP-14
Logic Family:
74LS
Input Logic Level - Low:
800mV
Operating Temperature:
-20℃~+75℃
Output Logic Level - Low:
400mV
Quiescent Current(Iq):
10mA
Propagation Delay:
23ns@5V,15pF
Voltage - Supply:
5V
Current - Output High(IOH):
400uA
Current - Output Low(IOL):
8mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
