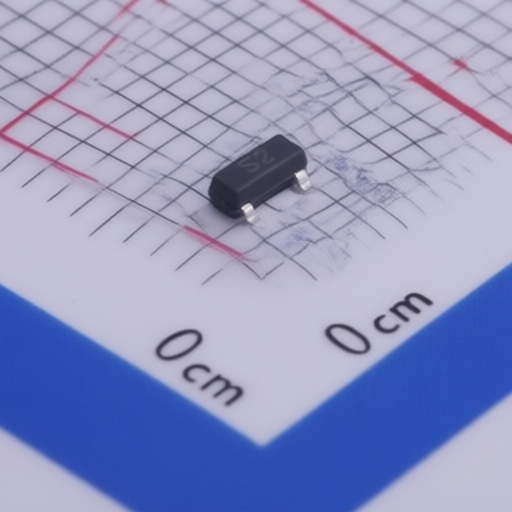

High Diode HD2302
Manufacturer:
High Diode
Asian Brands
Mfr. Part #:
HD2302
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 2.1A SOT-23
Description:
N-Channel 20V 2.1A 0.4W Surface Mount SOT-23
Datasheet:
High Diode HD2302
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.1A
Operating Temperature -:
-55℃~+150℃
RDS(on):
115mΩ@2.5V,2.1A
Gate Threshold Voltage (Vgs(th)):
650mV
Reverse Transfer Capacitance (Crss@Vds):
80pF@10V
Number:
1 N-channel
Input Capacitance(Ciss):
300pF@10V
Pd - Power Dissipation:
400mW
Gate Charge(Qg):
10nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
High Diode
297 Products
Jiangsu High Diode Semiconductor Co., Ltd.
(hereinafter referred to as "High Diode") is an emerging high-tech enterprise specializing in the research and development, production, sales and technical support of semiconductor discrete devices. The company specializes in the production of various series of SMD diodes, rectifier bridges and various types of large, medium and small power transistors, Schottky, fast recovery, Darlington, three-terminal regulators, MOS tubes and other semiconductor devices, which are widely used in home appliances, green lighting, IT, digital products, automotive electronics, industrial control and other fields. High Diode strictly organizes production in accordance with the ISO9001 quality management system and ISO14001 environmental management system, and has obtained the IATF16949 automotive quality management system standard certification. All products comply with the EU directive (ROHS) and can provide halogen-free products that meet customer needs.
