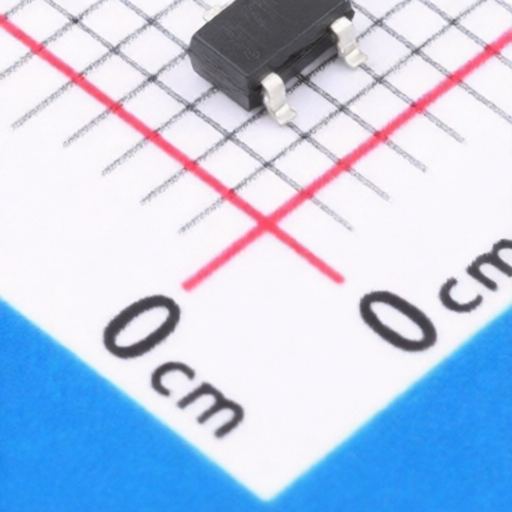

HICHON SM5701_2.2V
Manufacturer:
HICHON
Asian Brands
Mfr. Part #:
SM5701_2.2V
Package:
SOT-23-3L
Customer #:
Key Attributes:
Synchronous step-up DC-DC converter
Description:
Boost Switching Regulator IC 2.2V 1 Output 800mA SOT-23-3L
Datasheet:
HICHON SM5701_2.2V
Products Specifications
Category:
Manufacturer:
Package:
SOT-23-3L
Operating Temperature:
-40℃~+85℃
Frequency - Switching:
300kHz
Number of Outputs:
1
Function:
Boost
Output Type:
-
Topology:
Boost
Operating Voltage:
900mV~6.5V
Switch tube (built-in/external):
Built-in
Output Voltage:
2.2V
Output Current:
800mA
Quiescent Current:
17uA
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HICHON
28 Products
HiChonSilicon Co., Ltd.
(hereinafter referred to as "HICHON") was founded in 2019. It is an IC design company focusing on the development and sales of high-performance, high-quality digital-analog hybrid integrated circuit chips. HICHON's products cover chips and solutions in the fields of wireless networks, mobile devices, industrial control, etc., and are widely used in many fields such as smartphones, tablets, set-top boxes, solar energy, etc. HICHON has always been adhering to the concept of providing customers with high-quality services and the most cost-effective solutions in the industry, and is determined to become a world-class digital-analog hybrid IC integrated circuit design company.
