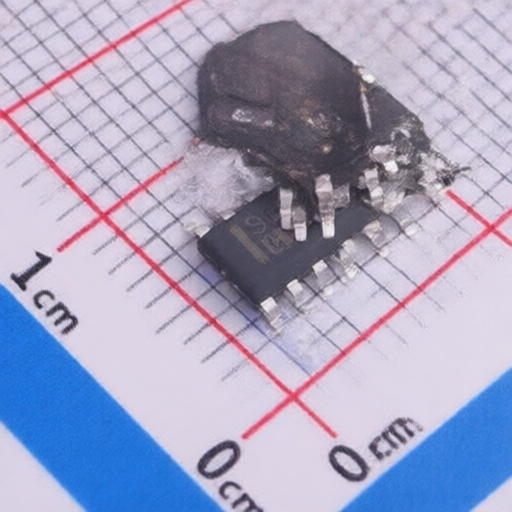

HGSEMI SG2525M/TR
Manufacturer:
HGSEMI
Asian Brands
Mfr. Part #:
SG2525M/TR
Package:
SOP-16
Customer #:
Key Attributes:
PWM Controller
Description:
Converter Offline 100Hz~500kHz SOP-16
Datasheet:
HGSEMI SG2525M/TR
Products Specifications
Manufacturer:
Package:
SOP-16
Operating Temperature:
-40℃~+85℃
Output Current:
400mA
Frequency - Switching:
100Hz~500kHz
Pd - Power Dissipation:
1W
Voltage - Breakdown:
-
Voltage - Supply:
8V~35V
Topology:
-
Features:
Over Voltage Protection;Short Circuit Protection;Over Temperature Protection;Over Current Protection;Under Voltage Protection;Soft Start
Duty Cycle(Max):
49%
Working Mode:
PWM Modulation
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542399000 |
| USHTS | 8542390001 |
| TARIC | 8542399000 |
| CAHTS | 8542390000 |
| BRHTS | 85423999 |
| INHTS | 85423900 |
| MXHTS | 8542.39.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HGSEMI
2357 Products
Guangdong HuaGuan Semiconductor Co., Ltd.
(hereinafter referred to as "HGSEMI") was established in 2011. It is a high-tech enterprise that specializes in the research and development, packaging, testing, and sales of semiconductor devices. The company has advanced semiconductor integrated circuit packaging and testing production lines. It has an annual production capacity of 2 billion integrated circuits. The company’s products include power management, amplifiers, interfaces and drivers, logic devices, data acquisition, MOSFETs, and special circuits, which are mainly used in automotive electronics, medical electronics, IoT, instrumentation, security, network communications, industrial automation, LED lighting, smart home appliances, and smart transportation. HGSEMI is actively committed to the sustainable development of the national semiconductor industry, providing excellent quality products and system solutions for building a harmonious and efficient society and achieving a win-win
