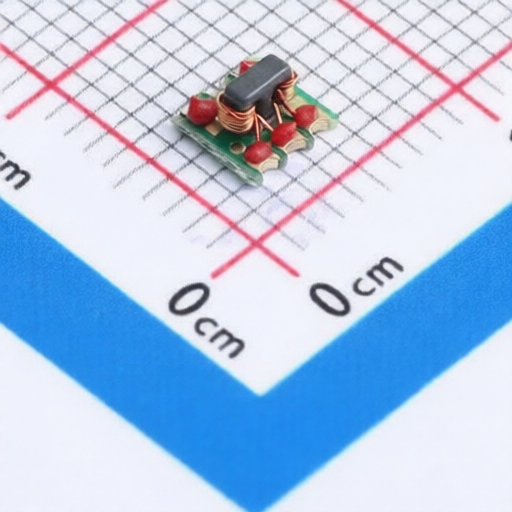

HenryTech H2DBTC-10-13LX+
Manufacturer:
HenryTech
Asian Brands
Mfr. Part #:
H2DBTC-10-13LX+
Package:
SMD-6P,4.2x4.2mm
Customer #:
Key Attributes:
Directional Coupler
Description:
2dB 20dB 10.8dB 5MHz~1GHz SMD-6P,4.2x4.2mm RF Directional Coupler RoHS
Datasheet:
HenryTech H2DBTC-10-13LX+
Products Specifications
Category:
Manufacturer:
Package:
SMD-6P,4.2x4.2mm
Insertion Loss:
2dB
Return Loss:
20dB
Coupling Factor:
10.8dB
Frequency Range:
5MHz~1GHz
Operating Temperature:
-40℃~+85℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8517799000 |
| USHTS | 8517790000 |
| TARIC | 8517790000 |
| CAHTS | 8517790000 |
| BRHTS | 85177900 |
| INHTS | 85177990 |
| MXHTS | 8517.70.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HenryTech
1185 Products
Chengdu HenryTech Technology Co., Ltd.
(hereinafter referred to as "HenryTech") was founded in 2015 in Chengdu, the global microwave and RF base, focusing on the research and development, design, manufacturing and distribution of RF and microwave components and integrated components. The company's main products include LTCC/LC filters, power dividers, balun transformers, couplers, RF adapters, RF connectors, RF loads, RF attenuators, cable assemblies, broadband conical inductors, microstrip power dividers and RF glass insulators, etc. The products are widely used in commercial, industrial, medical instruments, cellular wireless, CATV/broadband, RFID, test instruments, diagnostic imaging, etc. In the past 10 years, HenryTech has been committed to making chip value benefit every technology person with strict quality standards and rapid coverage replacement capabilities.
