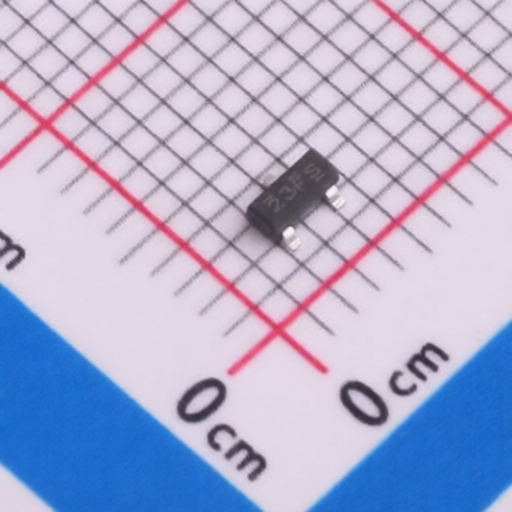

hengjiaxing HX2301A
Manufacturer:
hengjiaxing
Asian Brands
Mfr. Part #:
HX2301A
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 2.3A SOT-23
Description:
P-Channel 20V 2.3A 1W Surface Mount SOT-23
Datasheet:
hengjiaxing HX2301A
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.3A
Operating Temperature -:
-55℃~+150℃
RDS(on):
112mΩ@4.5V;140mΩ@2.5V
Gate Threshold Voltage (Vgs(th)):
700mV@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
37pF
Number:
1 P-Channel
Output Capacitance(Coss):
63pF
Input Capacitance(Ciss):
325pF
Pd - Power Dissipation:
1W
Gate Charge(Qg):
3.2nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
