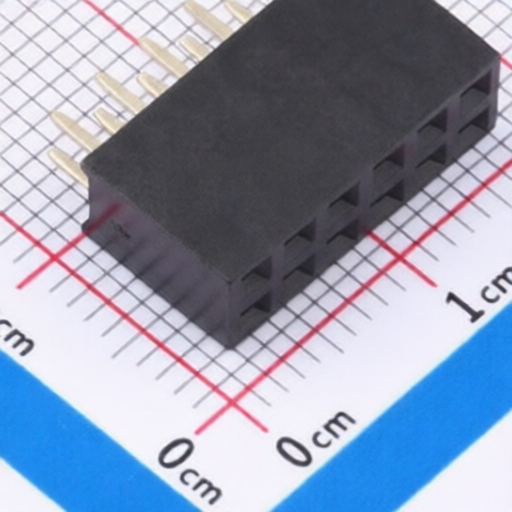

HDGC HDGCPH2.54-PZS-2X6
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
HDGCPH2.54-PZS-2X6
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 2.54mm DUAL ROW TH
Description:
Female Header 2.54mm Pitch Dual Row Through Hole
Datasheet:
HDGC HDGCPH2.54-PZS-2X6
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Rows:
2
Number of Pins:
12P
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x6P
Holes Direction:
Top
Current Rating:
3A
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HDGC
1770 Products
Shenzhen Huade Co-create Technology Co., Ltd
(hereinafter referred to as "HDGC") was founded in 2008 in Shenzhen, Guangdong. It is a professional electronic connector manufacturer integrating development, production and sales. The main product categories include wafer, housing, terminal, LED light bar connectors, IDC connectors, pin and female header connectors, which are widely used in automotive electronics, smart home, industrial control and other fields. HDGC adheres to technological innovation as the leading factor, continuously launches high-tech and high-quality products, and has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, UL (E350787) safety certification, and complies with environmental protection requirements such as RoHS, REACH, halogen-free, etc. HDGC is committed to becoming a reliable connector solution provider.
