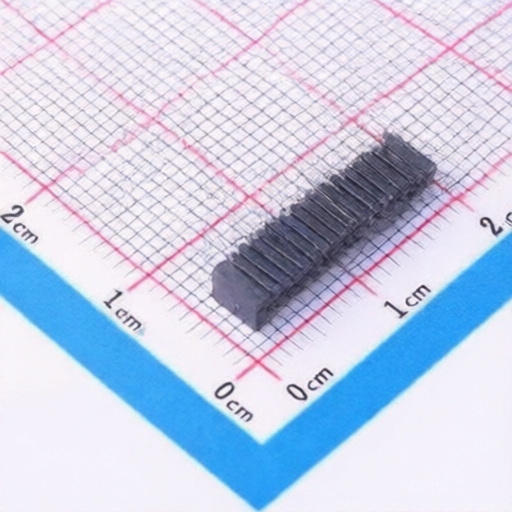

HDGC 1.0-B-16P
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
1.0-B-16P
Package:
Through Hole,P=1mm(Staggered Pins)
Customer #:
Key Attributes:
CONN FFC FPC 16POS 1mm TOP AND BOTTOM CNT TH
Description:
FFC/FPC Connector 16 Position 1mm Pitch Double-Sided Contacts, Top and Bottom Entry Through Hole -20℃~+85℃
Datasheet:
HDGC 1.0-B-16P
Products Specifications
Manufacturer:
Package:
Through Hole,P=1mm(Staggered Pins)
Operating Temperature:
-20℃~+85℃
Locking Feature:
Non-Latching
Number of Contacts:
16P
Pitch:
1mm
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Through Hole
FFC, FCB Thickness:
0.3mm
Contact Plating:
-
Contact Material:
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 8 |
| Multiple | 8 |
| Standard Packaging | 32 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HDGC
1770 Products
Shenzhen Huade Co-create Technology Co., Ltd
(hereinafter referred to as "HDGC") was founded in 2008 in Shenzhen, Guangdong. It is a professional electronic connector manufacturer integrating development, production and sales. The main product categories include wafer, housing, terminal, LED light bar connectors, IDC connectors, pin and female header connectors, which are widely used in automotive electronics, smart home, industrial control and other fields. HDGC adheres to technological innovation as the leading factor, continuously launches high-tech and high-quality products, and has passed ISO9001 quality management system certification, ISO14001 environmental management system certification, UL (E350787) safety certification, and complies with environmental protection requirements such as RoHS, REACH, halogen-free, etc. HDGC is committed to becoming a reliable connector solution provider.
