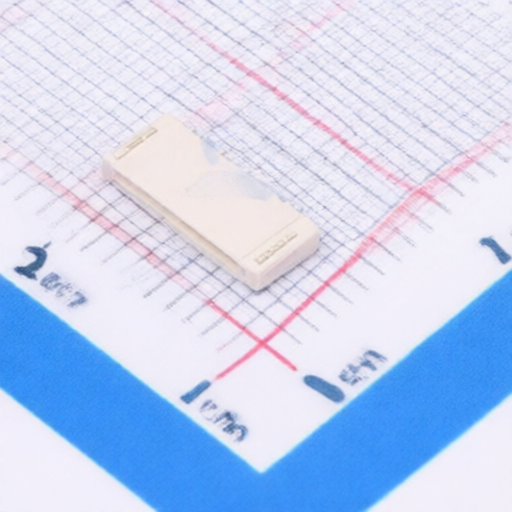

HDGC 0.5K-1.2W-14PWB
Manufacturer:
HDGC
Asian Brands
Mfr. Part #:
0.5K-1.2W-14PWB
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN FFC FPC 14POS 0.5mm TOP AND BOTTOM CNT SMD R/A
Description:
FFC/FPC Connector 14 Position 0.5mm Pitch Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle
Datasheet:
HDGC 0.5K-1.2W-14PWB
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Operating Temperature:
-40℃~+80℃
Locking Feature:
Non-Latching
Number of Contacts:
14P
Pitch:
0.5mm
Current Rating:
500mA
Voltage Rating (Max):
50V
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Gold
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
