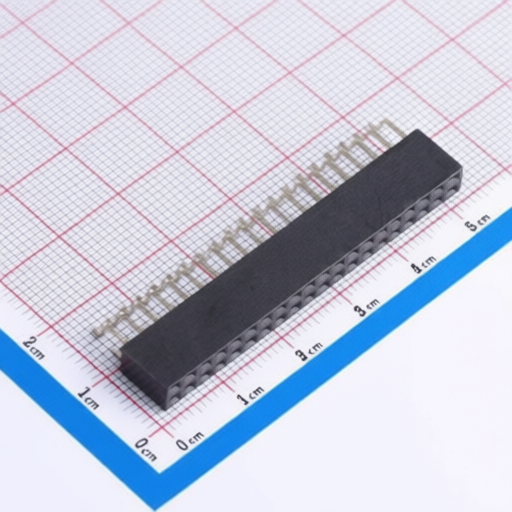

HCTL PM254-2-20-WS-8.5
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
PM254-2-20-WS-8.5
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN SOCKET 40POS 2.54mm DUAL ROW SMD R/A
Description:
2.54mm 2.54mm 2 40P Copper alloy -40℃~+105℃ 2x20P Side 3A Square Hole Surface Mount, Right Angle SMD,P=2.54mm,Surface Mount,Right Angle Headers, Receptacles, Female Sockets RoHS
Datasheet:
HCTL PM254-2-20-WS-8.5
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm,Surface Mount,Right Angle
Pitch:
2.54mm
Row Spacing:
2.54mm
Number of Rows:
2
Number of Pins:
40P
Contact Material:
Copper alloy
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x20P
Holes Direction:
Side
Current Rating:
3A
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 12 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HCTL
2177 Products
Shenzhen Huacan Tianlu Electronics Co., Ltd. is a high-tech enterprise integrating R&D, production, sales and service. The company is located in Bao'an District, Shenzhen.
Shenzhen Huacan Tianlu Electronics Co., Ltd. has been focusing on the research and development, production and sales of various connectors, TYPE-C, and rocker switches since its establishment. The company has a group of professional technicians and a complete quality monitoring system, and has successively introduced advanced testing instruments and production equipment at home and abroad to ensure product quality.
