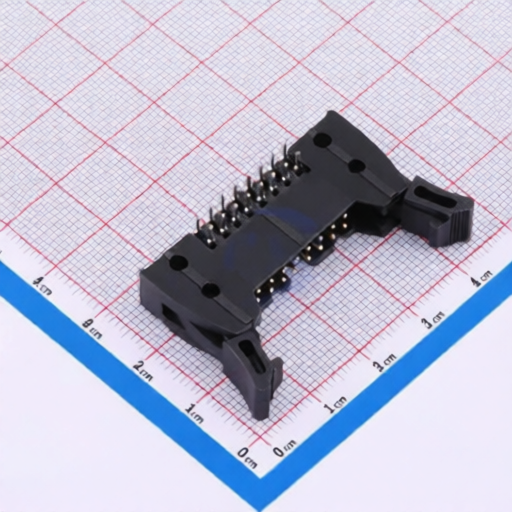

HCTL HC-XG-2*8AW-05
Manufacturer:
HCTL
Asian Brands
Mfr. Part #:
HC-XG-2*8AW-05
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN IDC HEADER TH R/A 16POS 2.54mm
Description:
Connector IDC Header Through Hole, Right Angle 16 position 2.54mm
Datasheet:
HCTL HC-XG-2*8AW-05
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Row Spacing:
2.54mm
Operating Temperature:
-25℃~+85℃
Current Rating:
3A
Contact Plating:
Gold
Contact Material:
Brass
Voltage Rating (Max):
250V
Number of Positions or Pins:
2x8P
Number of PINs Per Row:
8
Number of Rows:
2
Pitch:
2.54mm
Connector Type:
IDC Header
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 60 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
