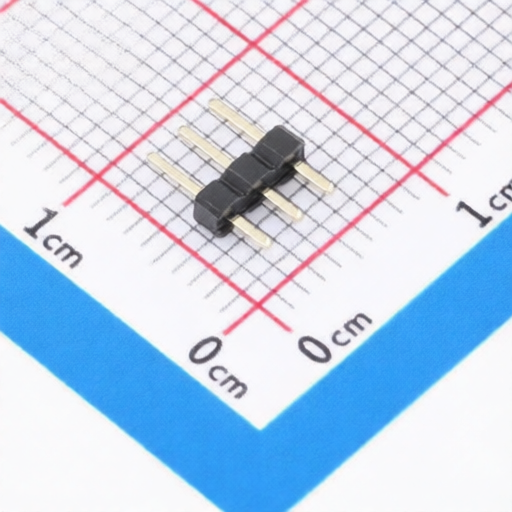

Harwin M22-2510305

Harwin M22-2510305

Name: Harwin M22-2510305
Brand: Harwin

Manufacturer: Harwin

Mfr. Part #: M22-2510305

Package: Through Hole,P=2mm

Customer #:

Description: Pin Header 3 Position 2mm Pitch Single Row Through Hole -40℃~+105℃

Datasheet: Harwin M22-2510305

Products Specifications

Manufacturer:

Harwin

Package:

Through Hole,P=2mm

Number of Pins:

Contact Plating:

Contact Material:

Phosphor Bronze

Operating Temperature:

-40℃~+105℃

Circluar Pins/Square Pins:

Pin Header

Color:

Black

Pitch:

2mm

Insulation Height:

1.5mm

Length of Mating Pin:

3.5mm

Voltage Rating (Max):

Length of End Connection Pin:

2.3mm

Number of Rows:

Current Rating-Signal:

Mounting Type:

Through Hole

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
