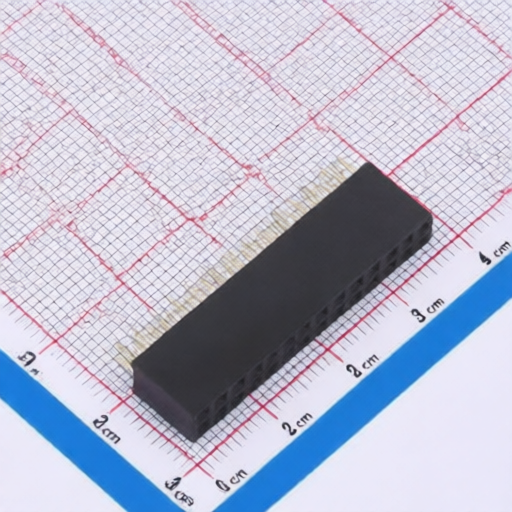

hanxia HX PM2.54-2x14P ZC
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM2.54-2x14P ZC
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
CONN SOCKET 28POS 2.54mm DUAL ROW TH
Description:
Female Header 28 Position 2.54mm Pitch Dual Row Through Hole -40℃~+105℃
Datasheet:
hanxia HX PM2.54-2x14P ZC
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Voltage Rating (Max):
1kV
Number of Pins:
28P
PIN Length:
3.2mm
Current Rating:
3A
Number of Rows:
2
Contact Plating:
Gold
Contact Material:
Brass
Holes Structure:
2x14P
Operating Temperature:
-40℃~+105℃
Holes Direction:
Top
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 120 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
