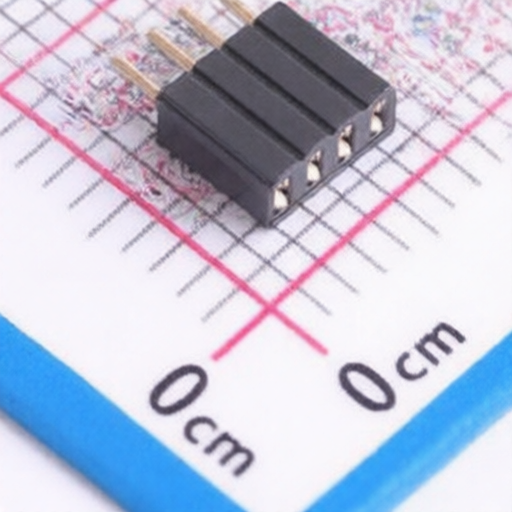

hanxia HX PM1.27-1x4P ZC H4.6
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM1.27-1x4P ZC H4.6
Package:
Through Hole,P=1.27mm
Customer #:
Key Attributes:
CONN SOCKET 4POS 1.27mm SINGLE ROW TH
Description:
Female Header 4 Position 1.27mm Pitch Single Row Through Hole -40℃~+105℃
Datasheet:
hanxia HX PM1.27-1x4P ZC H4.6
Products Specifications
Manufacturer:
Package:
Through Hole,P=1.27mm
Pitch:
1.27mm
Row Spacing:
-
Number of Pins:
4P
Voltage Rating (Max):
500V
PIN Length:
2.4mm
Current Rating:
1A
Number of Rows:
1
Supplementary Features:
-
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Holes Structure:
1x4P
Holes Direction:
Top
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
