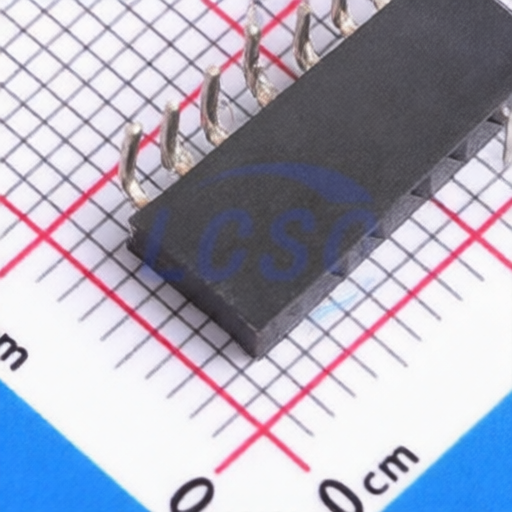

hanxia HX PM2.0-1x7P WC H6.35
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM2.0-1x7P WC H6.35
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN SOCKET 7POS 2mm SINGLE ROW TH R/A
Description:
2mm 500V 7P 1.5A 1 Gold Brass -40℃~+105℃ 1x7P Side Square Hole Right Angle Through Hole,Right Angle,P=2mm Headers, Receptacles, Female Sockets RoHS
Datasheet:
hanxia HX PM2.0-1x7P WC H6.35
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Pitch:
2mm
Row Spacing:
-
Voltage Rating (Max):
500V
Number of Pins:
7P
PIN Length:
2.8mm
Current Rating:
1.5A
Number of Rows:
1
Supplementary Features:
6T eco-friendly flame-retardant high-temp material
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Holes Structure:
1x7P
Holes Direction:
Side
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 300 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
