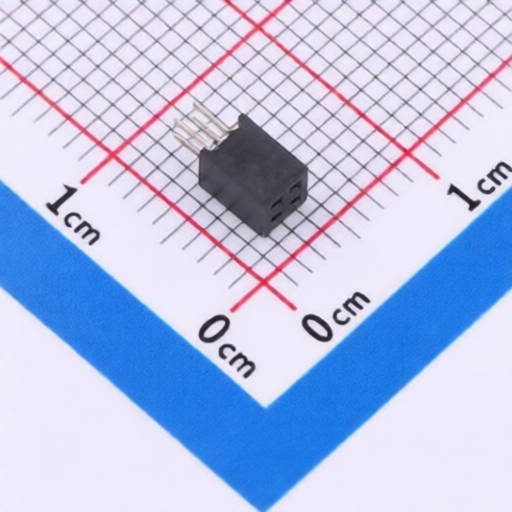

hanxia HX PM1.27-2x2P ZC
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM1.27-2x2P ZC
Package:
Through Hole,P=1.27mm
Customer #:
Key Attributes:
CONN SOCKET 4POS 1.27mm DUAL ROW TH
Description:
1.27mm 1.27mm 500V 4P 1A 2 Gold Phosphor Bronze -40℃~+105℃ 2x2P Top Square Hole Through Hole Through Hole,P=1.27mm Headers, Receptacles, Female Sockets RoHS
Datasheet:
hanxia HX PM1.27-2x2P ZC
Products Specifications
Manufacturer:
Package:
Through Hole,P=1.27mm
Pitch:
1.27mm
Row Spacing:
1.27mm
Voltage Rating (Max):
500V
Number of Pins:
4P
PIN Length:
2.4mm
Current Rating:
1A
Number of Rows:
2
Supplementary Features:
-
Contact Plating:
Gold
Contact Material:
Phosphor Bronze
Operating Temperature:
-40℃~+105℃
Holes Structure:
2x2P
Holes Direction:
Top
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
