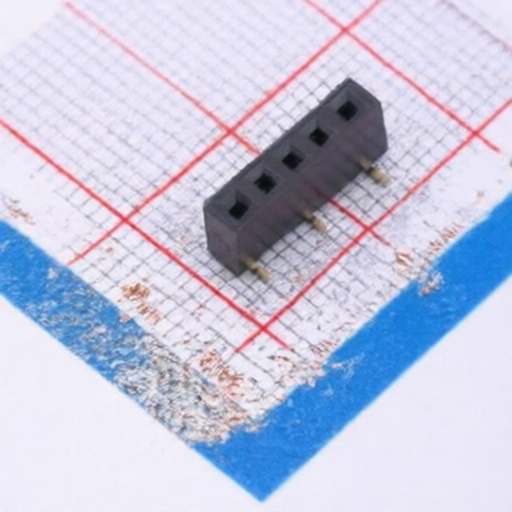

hanxia HX PM2.54-1x5P TP-YQ
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM2.54-1x5P TP-YQ
Package:
SMD,P=2.54mm(Staggered Pins)
Customer #:
Key Attributes:
CONN SOCKET 5POS 2.54mm SINGLE ROW SMD
Description:
Female Header 5 Position 2.54mm Pitch Single Row Surface Mount -40℃~+105℃
Datasheet:
hanxia HX PM2.54-1x5P TP-YQ
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm(Staggered Pins)
Pitch:
2.54mm
Row Spacing:
-
Voltage Rating (Max):
1kV
Number of Pins:
5P
PIN Length:
-
Current Rating:
3A
Number of Rows:
1
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Holes Structure:
1x5P
Holes Direction:
Top
Mounting Type:
Surface Mount,Vertical
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 23 |
| Multiple | 23 |
| Standard Packaging | 46 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
hanxia
1862 Products
Shenzhen Hanxia Electronics Co., Ltd
(hereinafter referred to as "HANXIA") was established in 2020. It is a high-tech enterprise focusing on the research and development and manufacturing of tact switches. The company's main products include tact switches, USB connectors, DC sockets, headphone jacks, etc., which are mainly used in automotive electronics, medical electronics, industrial equipment, new energy, consumer electronics, household appliances and other fields. HANXIA adheres to the concept of "development by quality and development by credit" to ensure the excellent quality of each product.
