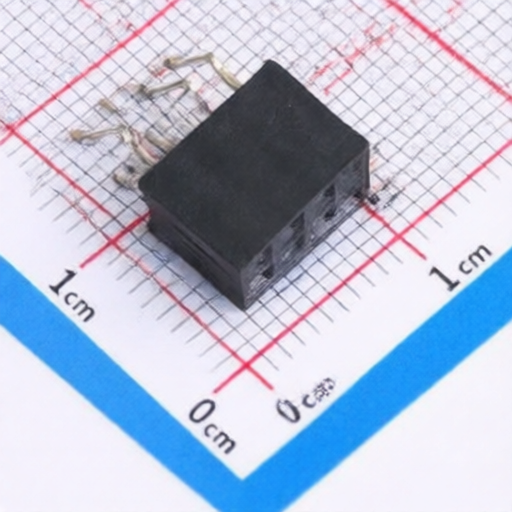

hanxia HX PM2.0-2x4P WT
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM2.0-2x4P WT
Package:
SMD,P=2mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN SOCKET 8POS 2mm DUAL ROW SMD R/A
Description:
Female Header 8 Position 2mm Pitch Dual Row Surface Mount, Right Angle -40℃~+105℃
Datasheet:
hanxia HX PM2.0-2x4P WT
Products Specifications
Manufacturer:
Package:
SMD,P=2mm,Surface Mount,Right Angle
Pitch:
2mm
Row Spacing:
2mm
Number of Pins:
8P
Voltage Rating (Max):
500V
Current Rating:
1.5A
Number of Rows:
2
Supplementary Features:
-
Contact Plating:
Gold
Contact Material:
Brass
Holes Structure:
2x4P
Operating Temperature:
-40℃~+105℃
Holes Direction:
Side
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 73 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
