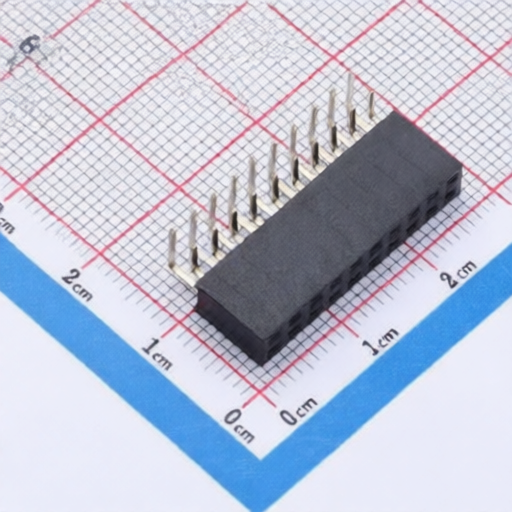

hanxia HX FH254-02-10-W-H8.5 right angle pin header
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX FH254-02-10-W-H8.5 right angle pin header
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Description:
2.54mm 2.54mm 1kV 20P 3A 2 Gold Brass 2x10P -40℃~+105℃ Side Square Hole Right Angle Through Hole,Right Angle,P=2.54mm Headers, Receptacles, Female Sockets RoHS
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Pitch:
2.54mm
Row Spacing:
2.54mm
Voltage Rating (Max):
1kV
Number of Pins:
20P
PIN Length:
3.2mm
Current Rating:
3A
Number of Rows:
2
Supplementary Features:
-
Contact Plating:
Gold
Contact Material:
Brass
Holes Structure:
2x10P
Operating Temperature:
-40℃~+105℃
Holes Direction:
Side
Circular Hole / Square Hole:
Square Hole
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 160 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
