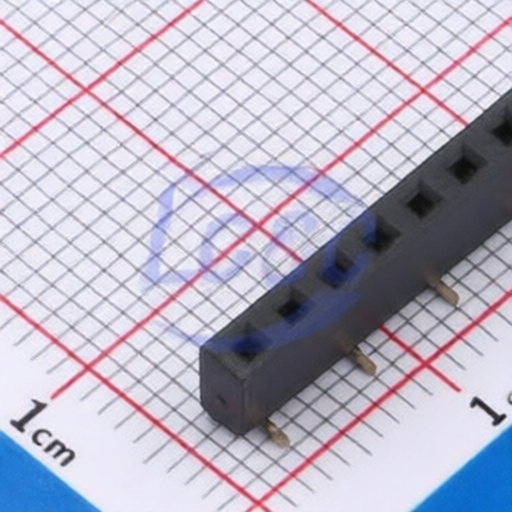

hanxia HX PM2.54-1x9P TP-YQ
Manufacturer:
hanxia
Asian Brands
Mfr. Part #:
HX PM2.54-1x9P TP-YQ
Package:
SMD,P=2.54mm(Staggered Pins)
Customer #:
Key Attributes:
CONN SOCKET 9POS 2.54mm SINGLE ROW SMD
Description:
2.54mm 1kV 9P 3A 1 Gold Brass -40℃~+105℃ 1x9P Top Surface Mount,Vertical Square Hole SMD,P=2.54mm(Staggered Pins) Headers, Receptacles, Female Sockets RoHS
Datasheet:
hanxia HX PM2.54-1x9P TP-YQ
Products Specifications
Manufacturer:
Package:
SMD,P=2.54mm(Staggered Pins)
Pitch:
2.54mm
Row Spacing:
-
Voltage Rating (Max):
1kV
Number of Pins:
9P
PIN Length:
-
Current Rating:
3A
Number of Rows:
1
Contact Plating:
Gold
Contact Material:
Brass
Operating Temperature:
-40℃~+105℃
Holes Structure:
1x9P
Holes Direction:
Top
Mounting Type:
Surface Mount,Vertical
Circular Hole / Square Hole:
Square Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 13 |
| Multiple | 13 |
| Standard Packaging | 26 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
