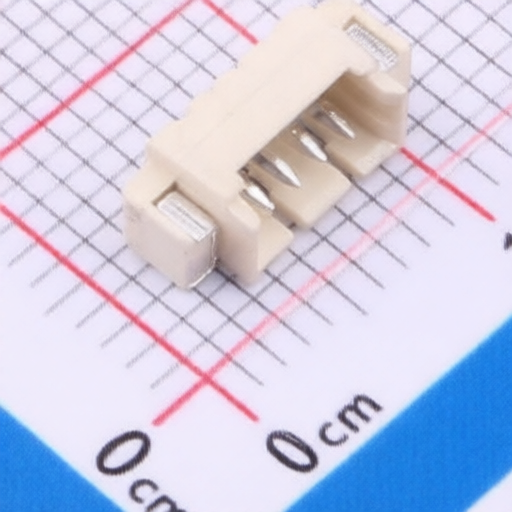

HanElectricity 9821WRS-04P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
9821WRS-04P
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 1.25mm
Description:
Connector Header 1.25mm Pitch Surface Mount, Right Angle
Datasheet:
HanElectricity 9821WRS-04P
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
5.25mm
Flame Retardant Rating:
UL94V-0
Reference Series:
PicoBlade(MX 1.25)
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
Brass;LCP
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
4
Number of Rows:
1
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
3.55mm
Mounting Type:
Surface Mount, Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HanElectricity
1295 Products
HanElectricity is a consumer electrical connector manufacturer based in China, boasting vertically integrated production capabilities from raw materials to assembly. The company primarily produces electrical connectors.
