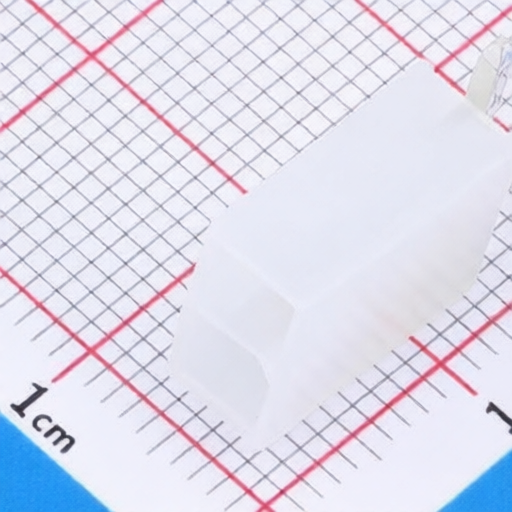

HanElectricity 9357WR-2X1P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
9357WR-2X1P
Package:
Through Hole,Right Angle,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 2POS 4.2mm
Description:
Connector Header 2 position 4.2mm Pitch 4A Right Angle -25℃~+85℃
Datasheet:
HanElectricity 9357WR-2X1P
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=4.2mm
Y-Width of Bottom Edge on Board:
13mm
Flame Retardant Rating:
UL94V-0
Reference Series:
Mini-Fit(MX 4.2)
Pins Structure:
2x1P
Contact Material:
Brass;PA66
Pitch:
4.2mm
Voltage Rating (Max):
300V
Number of PINs Per Row:
1
Number of Rows:
2
Z-Height of the Board:
9.7mm
Operating Temperature:
-25℃~+85℃
Row Spacing:
4.2mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
