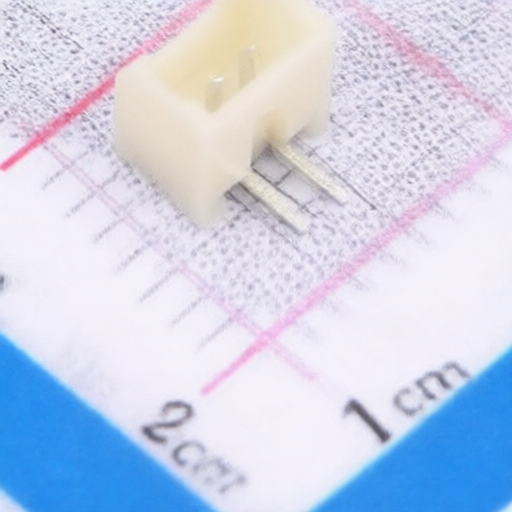

HanElectricity 9821WR-02P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
9821WR-02P
Package:
Through Hole,Right Angle,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 1.25mm
Description:
Connector Header 1.25mm Pitch Right Angle
Datasheet:
HanElectricity 9821WR-02P
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.25mm
Y-Width of Bottom Edge on Board:
4.6mm
Pins Structure:
1x2P
Reference Series:
PicoBlade(MX 1.25)
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
2
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
4.4mm
Operating Temperature:
-25℃~+85℃
Z-Height of the Board:
3.25mm
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
