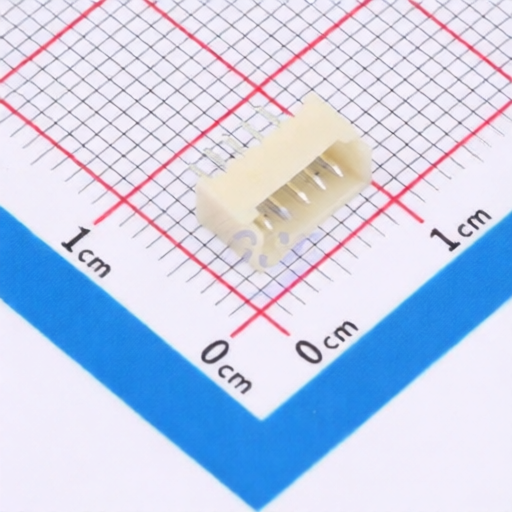

HanElectricity 9821WV-05P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
9821WV-05P
Package:
Through Hole,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER TH 1.25mm
Description:
Connector Header 1.25mm Pitch Through Hole
Datasheet:
HanElectricity 9821WV-05P
Products Specifications
Manufacturer:
Package:
Through Hole,P=1.25mm
Y-Width of Bottom Edge on Board:
2.9mm
Flame Retardant Rating:
UL94V-0
Reference Series:
PicoBlade(MX 1.25)
Pins Structure:
1x5P
Contact Plating:
Tin
Contact Material:
Brass;PA6T
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
5
Number of Rows:
1
Z-Height of the Board:
4.6mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HanElectricity
1295 Products
HanElectricity is a consumer electrical connector manufacturer based in China, boasting vertically integrated production capabilities from raw materials to assembly. The company primarily produces electrical connectors.
