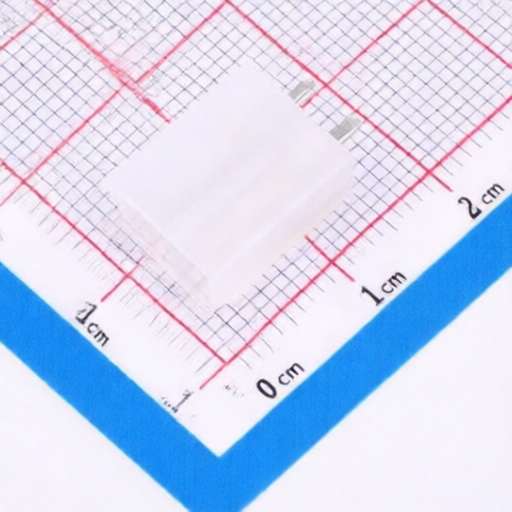

HanElectricity 9537WV-201P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
9537WV-201P
Package:
Through Hole,P=4.2mm
Customer #:
Key Attributes:
CONN HEADER TH 2POS 4.2mm
Description:
Connector Header 2 position 4.2mm Pitch Through Hole
Datasheet:
HanElectricity 9537WV-201P
Products Specifications
Manufacturer:
Package:
Through Hole,P=4.2mm
Y-Width of Bottom Edge on Board:
10mm
Pins Structure:
2x1P
Reference Series:
Mini-Fit(MX 4.2)
Contact Plating:
-
Contact Material:
-
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
UL94V-0
Pitch:
4.2mm
Voltage Rating (Max):
300V
Number of PINs Per Row:
1
Number of Rows:
2
X-Length of Bottom Edge on Board (Spacing Line):
5.4mm
Z-Height of the Board:
9.7mm
Row Spacing:
-
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
