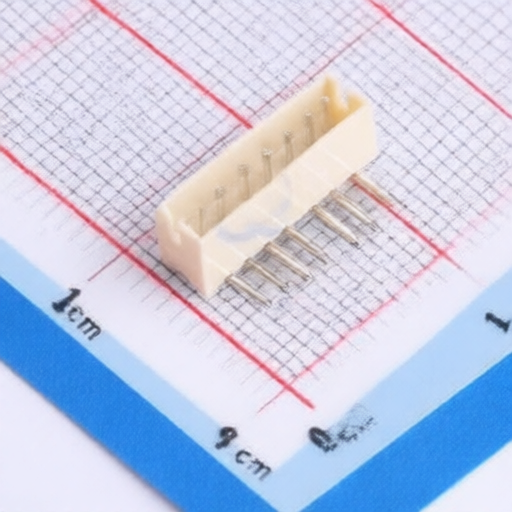

HanElectricity 1502WR-07P
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
1502WR-07P
Package:
Through Hole,Right Angle,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 1.5mm
Description:
Connector Header 1.5mm Pitch Right Angle
Datasheet:
HanElectricity 1502WR-07P
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=1.5mm
Y-Width of Bottom Edge on Board:
4.7mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x7P
Reference Series:
ZH
Contact Plating:
Tin
Contact Material:
Brass;PA66
Pitch:
1.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
7
Number of Rows:
1
Z-Height of the Board:
3.65mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HanElectricity
1295 Products
HanElectricity is a consumer electrical connector manufacturer based in China, boasting vertically integrated production capabilities from raw materials to assembly. The company primarily produces electrical connectors.
