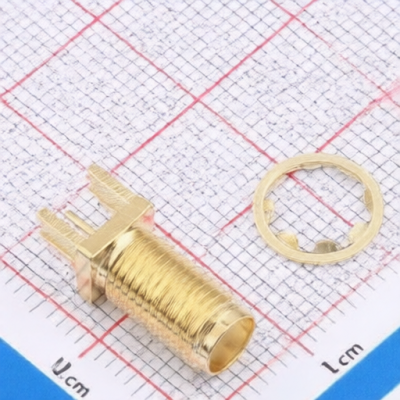

HanElectricity SMA-KE11
Manufacturer:
HanElectricity
Asian Brands
Mfr. Part #:
SMA-KE11
Package:
Through Hole
Customer #:
Description:
1 Inner Bore SMA Board Side Positive Pin -65℃~+165℃ 3GHz 50Ω Through Hole Coaxial Connector (RF) Assemblies RoHS
Products Specifications
Manufacturer:
Package:
Through Hole
Number of Ports:
1
Interface:
Inner Bore
RF Series:
SMA
Connector Type:
Board Side
Style:
Positive Pin
Rated voltage:
1kV
Operating Temperature:
-65℃~+165℃
Frequency:
3GHz
Impedance:
50Ω
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
Get Best Price
Inquiry
Negotiate
Payment
Shipping
HanElectricity
1295 Products
HanElectricity is a consumer electrical connector manufacturer based in China, boasting vertically integrated production capabilities from raw materials to assembly. The company primarily produces electrical connectors.
