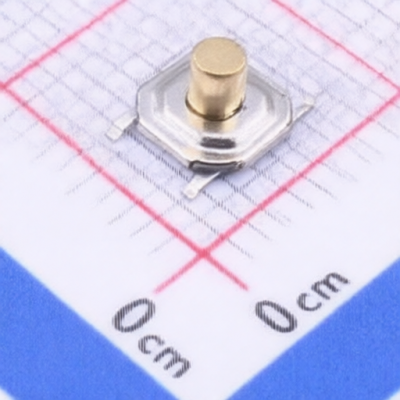

Hanbo Electronic TS-KG87S-AT35F
Manufacturer:
Hanbo Electronic
Asian Brands
Mfr. Part #:
TS-KG87S-AT35F
Package:
SMD-4P,5.2x5.2mm
Customer #:
Key Attributes:
SWITCH TACTILE SPST 250gf SMD
Description:
Tactile Switch SPST 250gf 3.5mm Gull Wing 5.2mm x 5.2mm Surface Mount
Products Specifications
Category:
Manufacturer:
Package:
SMD-4P,5.2x5.2mm
Voltage Rating:
12V
Switching Life:
-
with Bracket:
Without Bracket
Width:
5.2mm
Installation Method:
Surface Mount,Vertical
PressForce:
2.5N
Termination Style:
Gull Wing
Actuator Style:
Round Button
Length:
5.2mm
Actuator/Cap Color:
Yellow
Circuit:
SPST
Height:
3.5mm
Contact Current:
50mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536500090 |
| USHTS | 8536507000 |
| TARIC | 8536500300 |
| CAHTS | 8536501000 |
| BRHTS | 85365090 |
| INHTS | 85365090 |
| MXHTS | 8536.50.09 |
