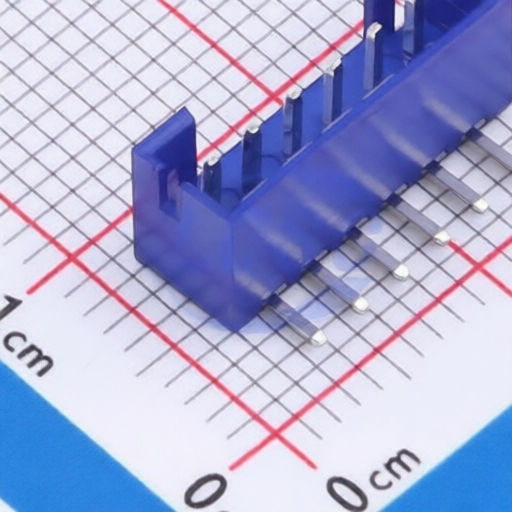

Hanbo Electronic WAFER-PH200WZ-6AL
Manufacturer:
Hanbo Electronic
Asian Brands
Mfr. Part #:
WAFER-PH200WZ-6AL
Package:
Through Hole,Right Angle,P=2mm
Customer #:
Key Attributes:
CONN HEADER TH R/A 6POS 2mm
Description:
Connector Header 6 position 2mm Pitch 2A Right Angle -25℃~+85℃
Datasheet:
Hanbo Electronic WAFER-PH200WZ-6AL
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2mm
Y-Width of Bottom Edge on Board:
4.8mm
Reference Series:
PH
Pins Structure:
1x6P
Pitch:
2mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
6
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
14mm
Z-Height of the Board:
6.1mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
