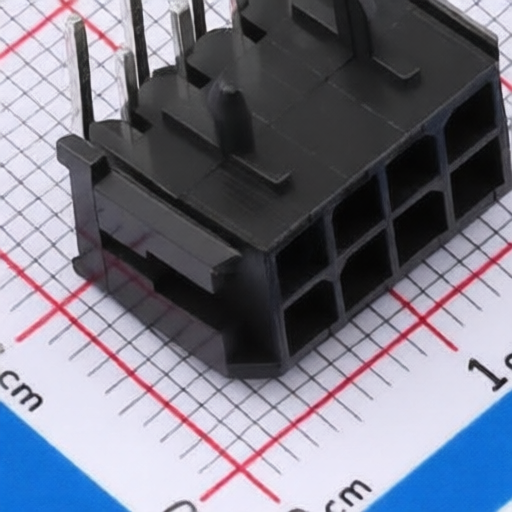

Hanbo Electronic WAFER-MX300WZ-24A
Manufacturer:
Hanbo Electronic
Asian Brands
Mfr. Part #:
WAFER-MX300WZ-24A
Package:
Through Hole,Right Angle,P=3mm
Customer #:
Description:
2x4P 3mm 250V 4 2 3mm -25℃~+85℃ Right Angle Through Hole,Right Angle,P=3mm Headers, Male Pins RoHS
Datasheet:
Hanbo Electronic WAFER-MX300WZ-24A
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=3mm
Y-Width of Bottom Edge on Board:
9.2mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
2x4P
Pitch:
3mm
Contact Material:
Brass;PA66
Voltage Rating (Max):
250V
Number of PINs Per Row:
4
Number of Rows:
2
Row Spacing:
3mm
Z-Height of the Board:
7.4mm
Operating Temperature:
-25℃~+85℃
Mounting Type:
Right Angle
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
