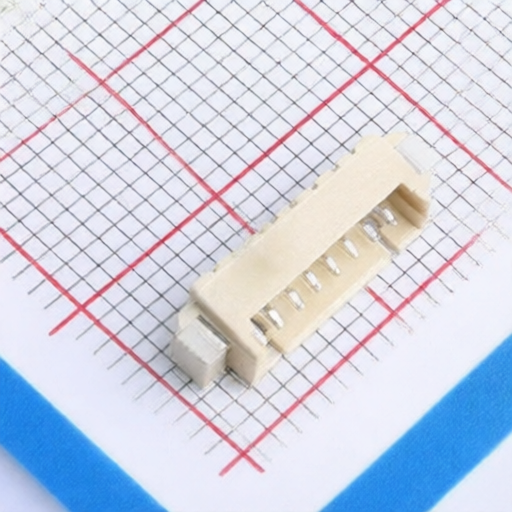

GREENCONN GWDD123-0801A001C2SD-9B
Manufacturer:
GREENCONN
Asian Brands
Mfr. Part #:
GWDD123-0801A001C2SD-9B
Package:
SMD,P=1.25mm
Customer #:
Key Attributes:
CONN HEADER SMD 8POS 1.25mm
Description:
Connector Header 8 position 1.25mm Pitch
Datasheet:
GREENCONN GWDD123-0801A001C2SD-9B
Products Specifications
Manufacturer:
Package:
SMD,P=1.25mm
Y-Width of Bottom Edge on Board:
4.4mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x8P
Contact Material:
Phosphor Bronze;LCP
Pitch:
1.25mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
8
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
11.75mm
Z-Height of the Board:
3.5mm
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-40℃~+105℃
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
