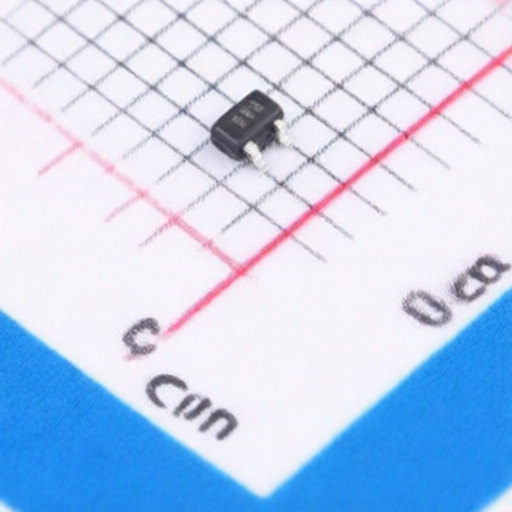

GOODWORK DMG1013T
Manufacturer:
GOODWORK
Asian Brands
Mfr. Part #:
DMG1013T
Package:
SOT-523
Customer #:
Key Attributes:
MOSFET P-CH 20V 700mA SOD-523
Description:
P-Channel 20V 700mA 312mW Surface Mount SOD-523
Datasheet:
GOODWORK DMG1013T
Products Specifications
Manufacturer:
Package:
SOT-523
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
700mA
RDS(on):
400mΩ@4.5V
Operating Temperature -:
-65℃~+150℃
Gate Threshold Voltage (Vgs(th)):
600mV@250uA
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
6.5pF
Number:
1 P-Channel
Output Capacitance(Coss):
15pF
Pd - Power Dissipation:
312mW
Input Capacitance(Ciss):
40pF
Gate Charge(Qg):
1nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
GOODWORK
2126 Products
Shenzhen Goodwork Electronics Co., Ltd.
(hereinafter referred to as "GOODWORK") was established in 2004. It is a national high-tech enterprise integrating professional R&D, production and sales of semiconductor discrete devices. Headquartered in Shenzhen, its own brand is "GK." GOODWORK's factory has introduced professional production equipment and testing instruments, and has passed ISO9001, ISO14001, and IATF16949 international quality management system certification. The main products include: diodes, transistors, rectifier bridge stacks, TVS, MOS, ESD, and three-terminal regulators. The products have achieved comprehensive independent research and development, with complete packaging shapes, tailored for customers, and passed the US UL, SGS EU ROHS and REACH environmental protection certification. The products are widely used in automotive electronics, new energy, lighting, industry, security, communications and other fields.
