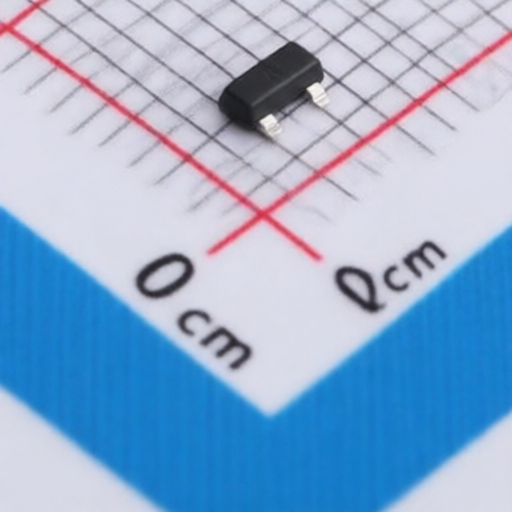

GOODWORK BAW56
Manufacturer:
GOODWORK
Asian Brands
Mfr. Part #:
BAW56
Package:
SOT-23
Customer #:
Key Attributes:
DIODE ARR GP 80V 150mA SOT-23
Description:
Diode Array 1 Pair Common Anode 80V 150mA Surface Mount SOT-23
Datasheet:
GOODWORK BAW56
Products Specifications
Manufacturer:
Package:
SOT-23
Reverse Leakage Current (Ir):
1uA@80V
Non-Repetitive Peak Forward Surge Current:
300mA
Reverse Recovery Time (trr):
4ns
Diode Configuration:
1 Pair Common Anode
Operating Junction Temperature Range:
-55℃~+150℃
Voltage - DC Reverse (Vr) (Max):
80V
Pd - Power Dissipation:
225mW
Voltage - Forward(Vf@If):
1.2V@150mA
Current - Rectified:
150mA
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541100000 |
| USHTS | 8541100040 |
| TARIC | 8541100000 |
| CAHTS | 8541100090 |
| BRHTS | 85411011 |
| INHTS | 85411000 |
| MXHTS | 8541.10.01 |
