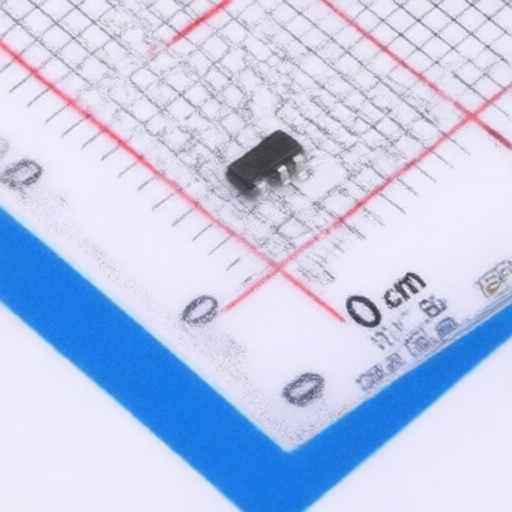

GN Semic GNV321A
Manufacturer:
GN Semic
Asian Brands
Mfr. Part #:
GNV321A
Package:
SOT-23-5
Customer #:
Key Attributes:
Rail-to-rail input/output low-power operational amplifier
Description:
Standard (General Purpose) Amplifier 1 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5
Datasheet:
GN Semic GNV321A
Products Specifications
Manufacturer:
Package:
SOT-23-5
Vos - Input Offset Voltage:
800uV
Input offset current drift(Ios TC):
-
Ib - Input Bias Current:
10pA
Slew Rate:
500V/ms
Quiescent Current(Iq):
45uA
Common Mode Rejection Ratio(CMRR):
89dB
Output Current:
30mA
Operating Temperature:
-40℃~+85℃
Voltage - Supply:
2.1V~5.5V;-2.75V~-1.05V;1.05V~2.75V
Gain Bandwidth Product:
1.1MHz
Input Offset Voltage Drift(Vos TC):
2.7uV/℃
Maximum Power Supply Range (Vdd-Vss):
5.5V
Number of Channels:
1
Rail To Rail:
Rail-to-Rail Input, Rail-to-Rail Output
Input Offset Current(Ios):
10pA
Noise density(eN):
27nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
