FUXINSEMI BTB16X-800CW
Manufacturer:
FUXINSEMI
Asian Brands
Mfr. Part #:
BTB16X-800CW

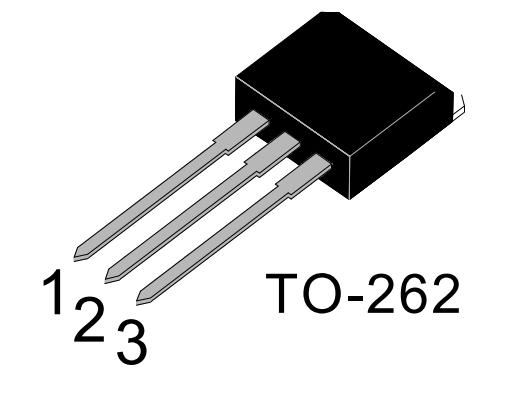

Package:
TO-262
Customer #:
Description:
40mA 35mA 800V TO-262 TRIACs RoHS
Datasheet:
FUXINSEMI BTB16X-800CW
Products Specifications
Manufacturer:
Package:
TO-262
Holding Current (Ih):
40mA
Current - Gate Trigger(Igt):
35mA
Voltage - On State(Vtm):
1.55V
Average Gate Power Dissipation (PG(AV)):
1W
Current - On State(It(RMS)):
16A
Peak off - state voltage(Vdrm):
800V
Current - Surge(Itsm@f):
160A@50Hz
Operating Temperature:
-40℃~+125℃
Gate Trigger Voltage (Vgt):
1.3V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541300000 |
| USHTS | 8541300080 |
| TARIC | 8541300000 |
| CAHTS | 8541300000 |
| BRHTS | 85413019 |
| INHTS | 85413010 |
| MXHTS | 8541.30.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
FUXINSEMI
868 Products
Fu
xinSemi
Semiconductor (Shenzhen) Co., Ltd.
(hereinafter referred to as "FuxinSemi") is a high-tech enterprise integrating R&D, production and sales. It has the industry's top R&D capabilities and advanced fully automated production lines for chip production, packaging and testing. The company has passed ISO and IATF 16949 quality management system certifications, and its products have passed UL, ROHS, REACH, HF and other tests. The main products include thyristors, MOSFETS, silicon carbide Schottky, diodes, transistors, etc. The products are widely used in consumer electronics, security, industrial control, automotive electronics, medical equipment, new energy and many other fields. FuxinSemi can also provide products that meet automotive regulations. The design of automotive products follows APQP, manufacturing management complies with IATF 16949, quality inspection complies with AEC-Q101, and continuous improvement is made to meet customer automotive requirements.
