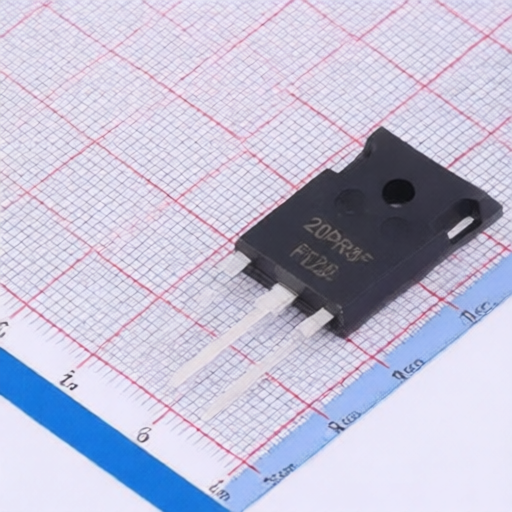

FUXINSEMI IHW20N135R5F
Manufacturer:
FUXINSEMI
Asian Brands
Mfr. Part #:
IHW20N135R5F
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 1.35kV 40A TO-247-3
Description:
IGBT 1.35kV 40A 333W Through Hole TO-247-3
Datasheet:
FUXINSEMI IHW20N135R5F
Products Specifications
Manufacturer:
Package:
TO-247-3
Pd - Power Dissipation:
333W
Td(off):
204ns
Td(on):
-
Collector-Emitter Breakdown Voltage (Vces):
1.35kV
Reverse Transfer Capacitance (Cres):
57pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.8V@1mA
Operating Temperature:
-40℃~+175℃
Gate Charge(Qg):
175nC@15V
Reverse Recovery Time(trr):
-
Switching Energy(Eoff):
1.02mJ
Turn-On Energy (Eon):
1.02mJ
Input Capacitance(Cies):
1.781nF
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
95pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
FUXINSEMI
868 Products
Fu
xinSemi
Semiconductor (Shenzhen) Co., Ltd.
(hereinafter referred to as "FuxinSemi") is a high-tech enterprise integrating R&D, production and sales. It has the industry's top R&D capabilities and advanced fully automated production lines for chip production, packaging and testing. The company has passed ISO and IATF 16949 quality management system certifications, and its products have passed UL, ROHS, REACH, HF and other tests. The main products include thyristors, MOSFETS, silicon carbide Schottky, diodes, transistors, etc. The products are widely used in consumer electronics, security, industrial control, automotive electronics, medical equipment, new energy and many other fields. FuxinSemi can also provide products that meet automotive regulations. The design of automotive products follows APQP, manufacturing management complies with IATF 16949, quality inspection complies with AEC-Q101, and continuous improvement is made to meet customer automotive requirements.
